Asus ROG STRIX Z690-A GAMING WIFI D4 LGA 1700 ATX-emolevy

Maksupalvelut

Arvostelut

Arvosana 4.7/5 perustuen 22 arvosteluun4,7
Lue kaikki 22 tuotearvostelua
  • 10%
  • 20%
  • 34%
  • 422%
  • 572%
  1. Great board as usual from ASUS

    Arvosana 5/5
    Great board. Good specs and love the button release for the GPU. Good over locking options.
    TiggerlatorArvostelu kirjoitettu sivustolla https://www.asus.com
  2. 5 * Product

    Arvosana 5/5
    A no hassle MB with plenty of features. Good options for OC and Thermal tuning
    MadMaxineArvostelu kirjoitettu sivustolla https://www.asus.com
  3. Good

    Arvosana 5/5
    Really nice motherboard, lots of ssd m2 slots, and solid gpu slot .
    MiroArvostelu kirjoitettu sivustolla https://www.asus.com
  4. Great DDR4 Z690 motherboard!

    Arvosana 5/5
    Excellent Z690 motherboard that has pretty much everything needed for a 2.5GHz nic, Gen 5 PCIe, enough Gen 4 PCIe M.2 drives. Great on cooling with integrated heat syncs for the M.2 drives, as well as superb VRM cooling. My 12700K overclocks with a breeze to 5.3Ghz at a low vcore. Overall very happy as I used the cash back offer so get it at a good price. stacked with features, looks great and I have had no issues since launch so it has been running stable for a long time now.
    VMax65Arvostelu kirjoitettu sivustolla https://www.asus.com
  5. long time Asus customer,

    Arvosana 5/5
    As a long time Asus motherboard customer, i find there products reliable and excellent quality. This motherboard is no acception and is of the quality i am used to. Recommended.
    Paul_NorfolkArvostelu kirjoitettu sivustolla https://www.asus.com
  6. Performs as good as it looks

    Arvosana 5/5
    A good looking board with everything you could want/need. I love it!
    Jay2Arvostelu kirjoitettu sivustolla https://www.asus.com
  7. My First PC Build experience

    Arvosana 5/5
    This is the first PC I have build using this MB. Its easy to build and has all necessary features required for entry level Enthusiast. Great value for money.
    manojkshArvostelu kirjoitettu sivustolla https://www.asus.com
  8. Great Gaming Motherboard

    Arvosana 5/5
    This is a superb motherboard. Lots of overclocking ability and looks cool too. I have only just installed this but so far I haven't had any issues. Everything is laid out as you would expect with the added feature of have all the M2 internal SSD slots covered with their own silver metal heatsinks, the only issue I had with that is the SSD I ordered came with its own pre-installed heatsink which meant it was too thick to install under the mother board heatsink but that was my mistake. It has a quick release button for the graphics card which makes removing it a whole lot easier than the other boards i have had especially if the cards are extra long. It comes with plenty of cables and fixings and too. The added bonus of integrated Bluetooth and the option to add the WIFI antenna makes this a very good board. It comes with a lighting effect called Aura (the IO backplate connector lights up on the board) which along with all the other RGB parts i have makes it look cool. My only criticism was that it only has one USB 3 header (along with 2 x USB 2 headers) and most cases now come with 4 USB 3 ports on the front which meant that i had to purchase a separate card so i connect all 4 ports. All in all i would recommend this as it has great features and so far has performed very well.
    Dazz21Arvostelu kirjoitettu sivustolla https://www.asus.com
  9. A solid mid range board.

    Arvosana 5/5
    Very solid board with good features plenty of storage options and great IO, the bios is extensive but intuitive and the ai overclock actually gives some decent results for those who dont want to tinker too much on their own. if you do though the addition of a bios reset on the rear IO is a welcome addition. Looks are subjective but I think it's a good looking board with ample RGB if that's your thing.
    D00dlesArvostelu kirjoitettu sivustolla https://www.asus.com
  10. Very good Motherboard BUT...no cpu temp

    Arvosana 5/5
    Very good Motherboard BUT...no cpu temp showing on display
    GrmnutArvostelu kirjoitettu sivustolla https://www.asus.com
  11. Lue kaikki 22 tuotearvostelua

Tuote-esittely

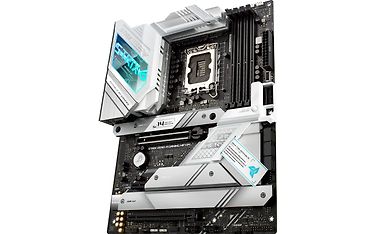

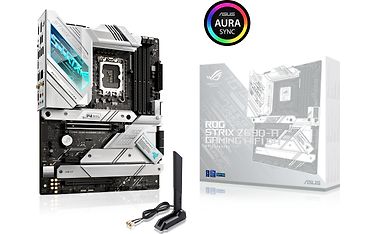

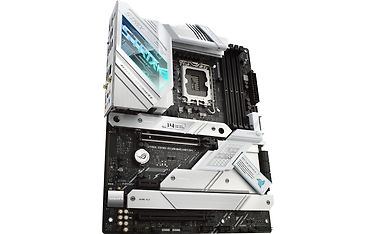

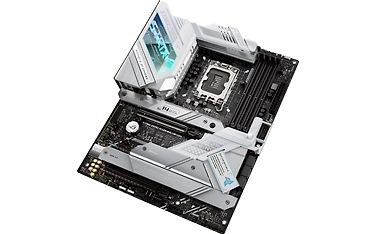

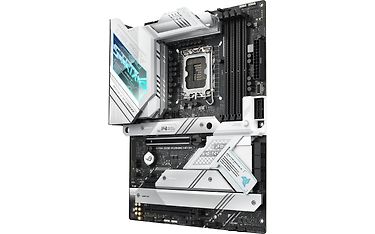

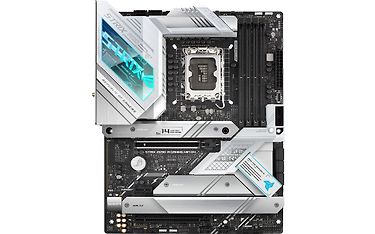

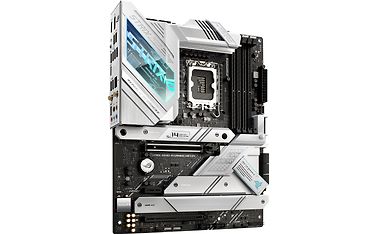

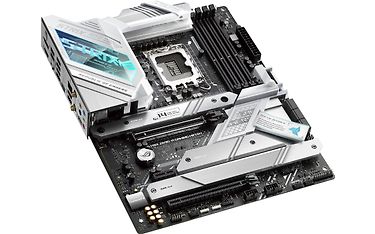

ROG STRIX Z690-A GAMING WIFI -emolevy on suunniteltu vastaamaan tehokkaiden 12. generaation Intel Core Alder Lake -suorittimien vaatimuksiin paremmalla virransyötöllä ja optimoidulla jäähdytyksellä. Uusin Intel Wi-Fi 6E ja PCI Express 4.0 M.2 tarjoavat huippunopeaa tiedonsiirtoa ja muistia. STRIX Z690-A GAMING WIFI -emolevy on eittämättä ROG futuristisine design elementteineen - värikäs ROG-logo ja Aura Sync -valaistus yhdistettynä valkoiseen pintaväriin antavat PC-rakennelmallesi hienovaraisen, mutta eloisan ulkonäön.
Asuksen STRIX Z690 -sarja on päivitetty tukemaan 12. sukupolven Intel Core -prosessoreita.

Ominaisuudet:

  • Piirisarja: Intel Z690
  • Prosessorikanta: LGA 1700
  • Prosessorituki: 12. sukupolven Intel Core, Pentium Gold and Celeron
  • Emolevyn koko: ATX
  • Muistipaikat (kpl): 4
  • Muistityyppi: DDR4
  • Muistin maksimimäärä (Gt): 128
  • Verkkoliitännät: Intel 2.5Gb Ethernet, ASUS LANGuard, Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
  • Äänikortti: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Laajennuspaikat

  • 1 x PCIe 5.0/4.0/3.0 x16 slot(s)
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 1 x PCIe 3.0 x1 slot

Kiintolevyliitännät

  • 6 x SATA 6Gb/s ports
  • 4 x M.2 slots
    M.2_1 slot (Key M), type 2242/2260/2280/22110
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

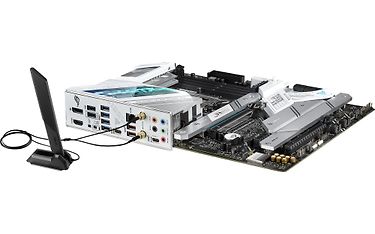

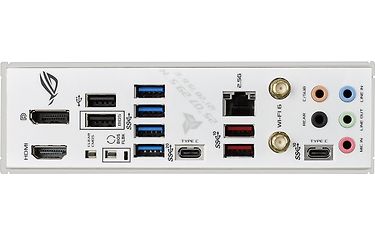

Takapaneelin liitännät

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Audio USB Type-C)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x ASUS Wi-Fi Module
  • 1 x Intel 2.5Gb Ethernet
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack button
  • 1 x Clear CMOS button

Sisäiset liitännät

  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connector
  • Storage related
  • 4 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x CPU Over Voltage jumper
  • 1 x 12-1 pin Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt header

Tuotekoodit ja brändi

Tuotenumero
736843
Brändi
Asus
Valm. tuotekoodi
90MB18K0-M0EAY0

Tuotteen linkit

Lisätiedot

Tekniset tiedot
  • Prosessorikanta: LGA 1700
  • Piirisarja: Intel Z690
  • Emolevyn kokoluokka: ATX
  • WiFi: Kyllä
  • Muistin maksimimäärä (Gt): 128
  • Muistipaikkojen määrä (kpl): 4
  • Tuettu keskusmuisti: DDR4
Tuotteen tiedot
BrändiAsus
Tuotekoodi90MB18K0-M0EAY0
EAN4711081446460
UNSPSC-koodi43201513
Takuutiedot
Takuuaika36 kk
Takuuohjeet
Asus huolto- ja tukipalvelu
ma - pe klo 10.00 - 18.00.
Puh: +358 (0)9 69 37 96 90.

https://www.asus.com/fi/support/
Tuotepakkaus
Pakkauksen koko28 cm x 7 cm x 34 cm
Pakkauksen paino2,4 kg
Pakkauksen tilavuus0,006664 m³ (6,664 l)
