Asus PRIME Z690-P WIFI LGA 1700 ATX-emolevy
Maksupalvelut
- 10%
- 20%
- 325%
- 40%
- 575%
- Tuotteen laatuArvosana 5/55,0
- OminaisuudetArvosana 5/55,0
- Vastinetta rahalleArvosana 5/55,0
Loistava emolevy suurella määrällä ominaisuuksia
Arvosana 5/5Ominaisuuksia enemmän kuin tarpeeksi ja asennus oli helppoa. Nuo valot eivät niin kiinnosta, mutta M.2 slotit tulivat tarpeeseen. Luku- ja kirjoitusnopeudet olivat Kingston KC3000 1024 Gt M.2 SSD -kovalevyn kanssa jopa yli luvatun 7000 Mt/s / 6000 Mt/s. Asuksen nettisivuilta löytyi tarvittavat ajurit ja homma pelaa. Tämän kanssa kiinni i7-12700 + Kingston FURY Beast DDR5 4800 MHz CL38 32 GtBooMThis motherboard provides an excellent build.
Arvosana 5/5This motherboard provides an excellent start in forming a new PC. I have built with Asus boards for a number of years and consider them to be of excellent quality and consistent in the description and support provided on the Asus website also for the most recent bios and driver files required when complete. I chose an Intel board again for consistent support knowing drivers would be available into the future also that Windows 11 would be fully supported by my build knowing that our Windows 10 PCs only have until October 2025 when support will cease and updates and patches to cover security will cease. I was also careful to check the Asus site prior to ordering, for compatibility of all components with this motherboard Processor and memory particularly. I enjoyed my build took my time in selecting the component and now have a fully working modern PC that should work long into the future.AnthonyBArvostelu kirjoitettu sivustolla https://www.asus.comGreat Motherboard at a good price
Arvosana 5/5The motherboard had a straightforward setup process and worked first time. Various connection ports were easy to connect and install. Would highly recommend the board for anyone wanting to build their own computer with DDR5 memory and a 12th generation intel chip or equivalent. Its been a week so far and the motherboard is working fine. Its nice to have a desktop that makes no noise, this was due to the CPU fan but changed this to a water cooler system as part of the upgrade. 8 years my other computer lasted so I'm hoping for the same or better results with this one.Andrew BurnsArvostelu kirjoitettu sivustolla https://www.asus.comDDR5 support update
Arvosana 3/5Appears to be a versatile motherboard. However, the DDR5 memory installed is not performing at it highest functionality. I was advised by the retailer that this would be fixed by Bios updates to the mobo yet to be released, so I am awaiting the release of firmware to remedy this matter. One other thing, for my specific needs i.e. music production, more USB connectivity would have been useful. This is my fourth Asus mobo and with the exception of one, which died on me, I have generally had positive experiences, hence my preference for Asus.S ButlerArvostelu kirjoitettu sivustolla https://www.asus.com
Tuote-esittely
ASUS Prime -sarjan emolevyt on asiantuntijuudella suunniteltu 12. sukupolven Intel Core -suorittimien täyden potentiaalin. Asus Prime Z690-P WIFI -emolevy rehentelee jykevällä virtadesignillaan, kokonaisvaltaisella jäähdystysjärjestelmällään ja älykkäillä kustomointi-vaihtoehdoillaan - se tarjoaa niin päivittäiskäyttäjille kuin tee-se-itse PC-rakentajille laajan valikoiman tehokkaita tuunausvaihtoehtoja intuitiivisella ohjelmistolla ja laiteohjelmien ominaisuuksilla.
Ominaisuudet:
- Piirisarja: Intel Z690
- Prosessorikanta: LGA 1700
- Prosessorituki: 12. sukupolven Intel Core, Pentium Gold and Celeron
- Emolevyn koko: ATX
- Muistipaikat (kpl): 4
- Muistityyppi: DDR5
- Muistin maksimimäärä (Gt): 128
- Verkkoliitännät: Realtek 2.5Gb Ethernet, Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
- Äänikortti: Realtek 7.1 Surround Sound High Definition Audio CODEC
Laajennuspaikat
- 1 x PCIe 5.0/4.0/3.0 x16 slot
- 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x16 slots (support x4 mode)
- 1 x PCIe 3.0 x1 slot
Kiintolevyliitännät
- 4 x SATA 6Gb/s ports
- 3 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280/22110
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

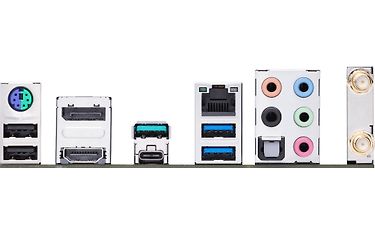

Takapaneelin liitännät
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 1 x USB 3.2 Gen 2 port (1 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x PS/2 Keyboard/Mouse combo port
Sisäiset liitännät
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 3 x 4-pin Chassis Fan header(s)
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C)
- 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 2 x AURA RGB header
- 1 x Clear CMOS button
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal Sensor header
- 1 x Thunderbolt header
Tuotekoodit ja brändi
- Tuotenumero
- 736861
- Brändi
- Asus
- Valm. tuotekoodi
Tuotteen linkit
Lisätiedot
|
Brändi | Asus |
Tuotekoodi | 90MB1A90-M0EAY0 |
EAN | 4711081469612 |
UNSPSC-koodi | 43201513 |
Takuuaika | 36 kk |
Takuuohjeet | Asus huolto- ja tukipalvelu ma - pe klo 10.00 - 18.00. Puh: +358 (0)9 69 37 96 90. https://www.asus.com/fi/support/ |
Pakkauksen koko | 27,5 cm x 6,7 cm x 33,5 cm |
Pakkauksen paino | 1,664 kg |
Pakkauksen tilavuus | 0,006172375 m³ (6,172375 l) |
Näytä hintapuntari |
Viimeksi saapuneet |
|
Viimeksi myyty |
|
Lisätty valikoimaan | 1.10.2021 |
