Asus TUF GAMING B550M-PLUS AM4 microATX-emolevy
Maksupalvelut
- 10%
- 20%
- 30%
- 414%
- 585%
Good connectivity for micro ATX board.
Arvosana 5/5Good connectivity for micro ATX board. Has 2.5GBe Ethernet.Peter MArvostelu kirjoitettu sivustolla https://www.asus.comA great product in a small package.
Arvosana 5/5Easy install and lots of options. Very happy to recommend. Paired with a new AMD Ryzen 5900 and 32Gb of DDR4, 2x 1Tb NVMe this thing flies.A1danTArvostelu kirjoitettu sivustolla https://www.asus.comGreat product
Arvosana 5/5Great piece of robust hardware. Going to make a very good machine.Dave SollisArvostelu kirjoitettu sivustolla https://www.asus.comVersatile and powerful.
Arvosana 5/5Well designed gaming motherboard, with high quality components and great layout for system build with no technical problems to report, very impressed and pleased with software support as well.AnonyymiArvostelu kirjoitettu sivustolla https://www.asus.comBest Board So Far
Arvosana 5/5Love the board. Perfectly laid out. Instructions were clear. Previously had a Gigabyte board and ASUS crate, although far from good, is just miles ahead of the Gigabyte. Not even comparable.ArceroArvostelu kirjoitettu sivustolla https://www.asus.comThis is already my second experience with Asus
Arvosana 5/5The purchase was very good, and it arrived very fast.Kaik_lmArvostelu kirjoitettu sivustolla https://www.asus.comAsus Tuf Gaming plus wifi
Arvosana 4/5Good strudy gaming board, easy to setup. Updated bios to latest version. System now ready for Windows 11. Using Ryzen 7, 5700X and Radeon RX 6800, with smart access memory. The board performs amazing really pleased with it.HlcstudyArvostelu kirjoitettu sivustolla https://www.asus.com
Tuote-esittely

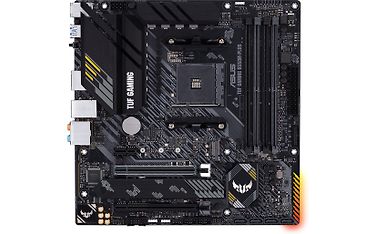

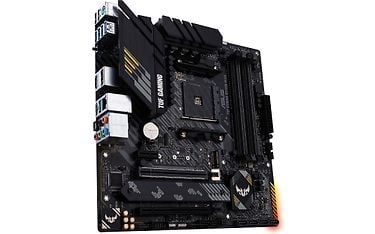

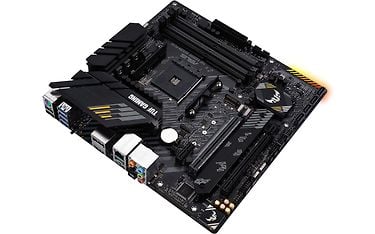

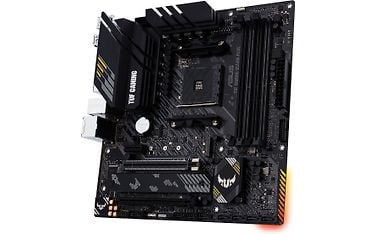

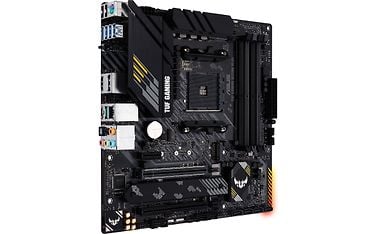

Asus TUF GAMING B550M-PLUS on AMD B550 -piirisarjalla varustettu AM4-kantainen emolevy 3. sukupolven AMD Ryzen prosessoreille. Emolevy tukee myös BIOS-päivityksellä tulevan sukupolven AMD Ryzen prosessoreita. B550 piirisarjan PCIe 4.0 -tuki tarjoaa tarvittavan kaistan huippunopeille SSD-levyille ja seuraavan sukupolven näytönohjaimille!
Asus TUF Gaming B550 sarjan emolevyjen suunnittelun lähtökohtana on kestävyys ja uusimmat ominaisuudet. Laadukas virransyöttö ja sen jäähdytys mahdollistaa myös tehokkaimpien AMD Ryzen -prosessoreiden ylikellotuksen ja dedikoitu virtaliitin tarjoaa virransyötön niin AIO-vesijäähdytyspaketeille kuin custom-seteillekkin.
Ominaisuudet:
- Piirisarja: AMD B550
- Prosessorikanta: AM4
- Prosessorituki: 3. sukupolven Ryzen-sarjan suorittimet
- Emolevyn koko: microATX
- Muistipaikat(kpl): 4
- Muistityyppi: DDR4
- Muistin maksimimäärä(Gt): 128
- Verkkoliitännät: Realtek RTL8125B 2.5Gb Ethernet
- Äänikortti: Realtek ALC S1200A
- CrossFireX-tuki: Kyllä
- SLI-tuki: Ei
Laajennuspaikat
- 1 x PCIe 4.0 x16 (x16 mode)
- 1 x PCIe 3.0 x16 (x4 mode)
- 1 x PCIe 3.0 x1
Kiintolevyliitännät
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
- 4 x SATA 6Gb/s port(s)

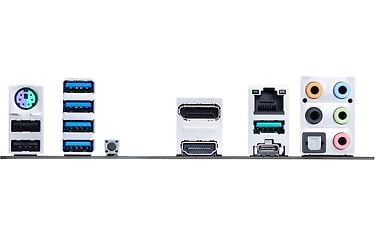

Takapaneelin liitännät
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (2.5G) port(s)
- 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 2 x USB 2.0
- 1 x Optical S/PDIF out
- 5 x Audio jack(s)
- 1 x BIOS FlashBack Button(s)
Sisäiset liitännät
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 2 x Chassis Fan connector(s)
- 2 x Aura RGB Strip Headers
- 1 x Addressable Gen 2 header(s)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x SPI TPM header
- 4 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin EATX 12V Power connectors
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Clear CMOS jumper(s)
- 1 x System panel connector
- 1 x COM port header
- 1 x Speaker connector
Tuotekoodit ja brändi
- Tuotenumero
- 633964
- Brändi
- Asus
- Valm. tuotekoodi
Tuotteen linkit
Lisätiedot
|
Brändi | Asus |
Tuotekoodi | TUF GAMING B550M-PLUS / 90MB14A0-M0EAY0 |
EAN | 4718017623544 |
UNSPSC-koodi | 43201513 |
Takuuaika | 36 kk |
Takuuohjeet | Asus huolto- ja tukipalvelu ma - pe klo 10.00 - 18.00. Puh: +358 (0)9 69 37 96 90. https://www.asus.com/fi/support/ |
Pakkauksen koko | 28 cm x 7 cm x 27 cm |
Pakkauksen paino | 1,32 kg |
Pakkauksen tilavuus | 0,005292 m³ (5,292 l) |
